Power Heads



Heavy-duty powerheads are available in 6”, 8”, and 10” horizontal models, and inclined models from 6” to 8”, 8” to 10”, and 10” to 12”. These heavy-duty models are designed to be used with the powersweep systems but can be used on standard unload tubes as well. The drives are assembled and include the driven sheaves, drive shaft, drive belt(s), steel belt guard with a two pin removal system, motor mount, and assembly hardware. The motor mount is the easy-off design with one pin removal. The over-center belt tensioner is standard and is a convenient way to adjust tension on the drive belts. This feature also serves as a quick (at the source) power shut-off in emergencies.

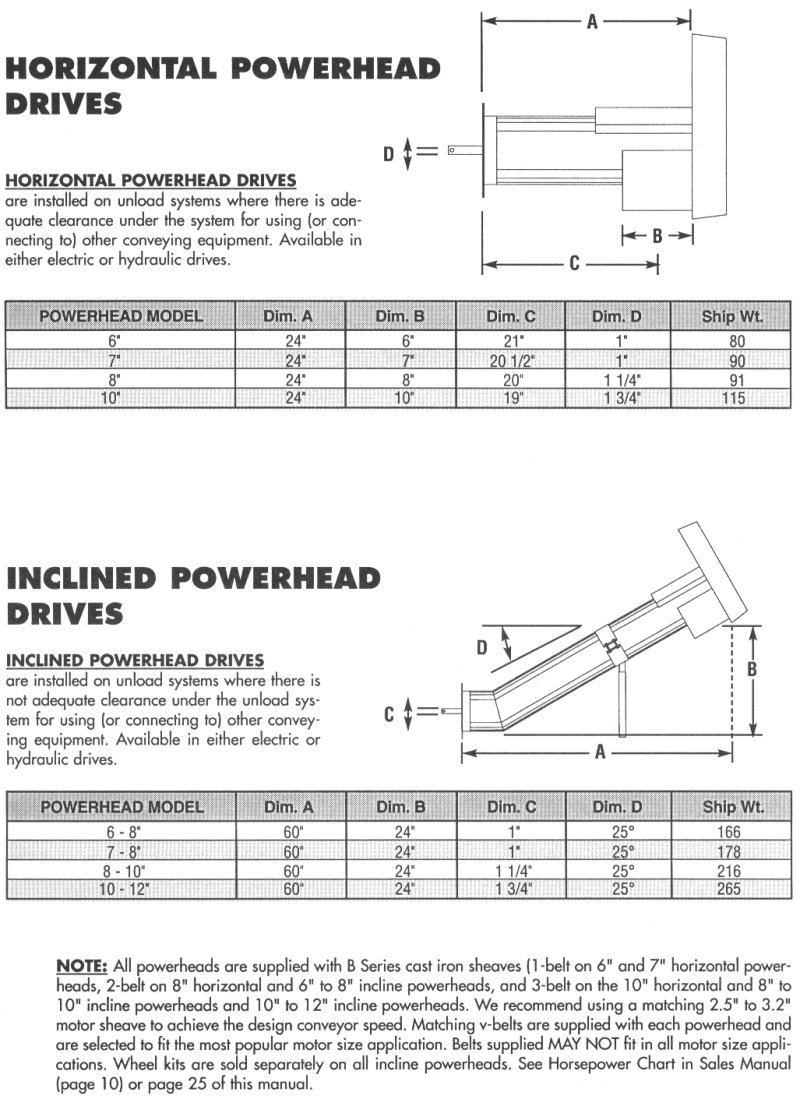

Dimensional Data



Horsepower Requirements

Standard Unload Tubes & Powerheads
6"
6"
6"
8"
8"
8"
10"
10"
10"
Bin Diameter
HORIZ.
INCL.
VERT.
HORIZ.
INCL.
VERT.
HORIZ.
INCL.
VERT.
18'
1.5
5.0
5.0
3.0
7.5
7.5
5.0
10.0
15.0
21'
1.5
5.0
5.0
3.0
7.5
10.0
5.0
10.0
15.0
24'
2.0
7.5
5.0
3.0
7.5
10.0
5.0
10.0
15.0
27'
2.0
7.5
7.5
3.0
7.5
10.0
5.0
10.0
15.0
30'
2.0
7.5
7.5
3.0
10.0
10.0
5.0
15.0
15.0
33'
2.0
7.5
7.5
3.0
10.0
10.0
5.0
15.0
15.0
36'
3.0
7.5
7.5
5.0
10.0
10.0
5.0
15.0
15.0
42'
3.0
7.5
7.5
5.0
10.0
10.0
7.5
15.0
15.0
48'
3.0
7.5
7.5
5.0
10.0
15.0
7.5
15.0
20.0



Powersweep Systems
8"
8"
8"
10"
10"
10"
Bin Diameter
HORIZ.
INCL.
VERT.
HORIZ.
INCL.
VERT.
Bushels per inch
18'
5.0
7.5
10.0
7.5
10.0
15.0
18
21'
5.0
7.5
10.0
7.5
10.0
15.0
24
24'
5.0
7.5
10.0
7.5
10.0
20.0
31
27'
7.5
7.5
10.0
7.5
10.0
20.0
40
30'
7.5
10.0
15.0
7.5
15.0
20.0
49
33'
7.5
10.0
15.0
10.0
15.0
20.0
60
36'
7.5
10.0
15.0
10.0
15.0
20.0
71
42'
10.0
10.0
15.0
10.0
15.0
20.0
96
48'
10.0
15.0
20.0
15.0
20.0
25.0
126
60'
25.0
30.0
35.0
197



Standard Rotating Bin Sweeps
4" for 6"
5" for 8"
7" for 10"
Bin Diameter
Tubes
Tubes
Tubes
18'
1.5
1.5
3.0
21'
1.5
2.0
3.0
24'
1.5
2.0
3.0
27'
2.0
2.0
3.0
30'
2.0
3.0
5.0
33'
2.0
3.0
5.0
36'
2.0
3.0
5.0
42'
3.0
3.0
5.0
48'
3.0
3.0
5.0
