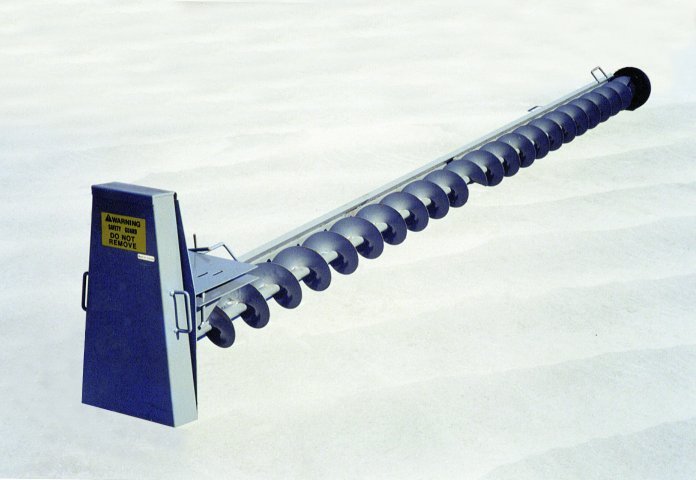

Bin Sweeps



Available in 4” diameter, (6” systems), 5” diameter (8” systems), or 7” (10” systems). They include the driven sheave, drive shaft, drive belt(s), belt guard, motor mount, wheel end drive, and assembly hardware. The motor mount is an easy-off design with one pin removal. Sweeps can be ordered to allow the backboard to be adjusted to fit two or three consecutive bin diameters. The adjustable backboard is shortened or lengthened with only four setscrews. No special tools are required and no parts to lose.



Dimensional Data



Horsepower Requirements

Standard Unload Tubes & Powerheads
6"
6"
6"
8"
8"
8"
10"
10"
10"
Bin Diameter
HORIZ.
INCL.
VERT.
HORIZ.
INCL.
VERT.
HORIZ.
INCL.
VERT.
18'
1.5
5.0
5.0
7.5
10.0
15.0
5.0
10.0
15.0
21'
1.5
5.0
5.0
7.5
10.0
15.0
5.0
10.0
15.0
24'
2.0
7.5
5.0
7.5
10.0
20.0
5.0
10.0
15.0
27'
2.0
7.5
7.5
7.5
10.0
20.0
5.0
10.0
15.0
30'
2.0
7.5
7.5
7.5
15.0
20.0
5.0
15.0
15.0
33'
2.0.
7.5
7.5
10.0
15.0
20.0
5.0
15.0
15.0
36'
3.0
7.5
7.5
10.0
15.0
20.0
5.0
15.0
15.0
42'
3.0
7.5
7.5
10.0
15.0
20.0
7.5
15.0
15.0
48'
3.0
7.5
7.5
15.0
20.0
25.0
7.5
15.0
20.0



Powersweep Systems
8"
8"
8"
10"
10"
10"
Bin Diameter
HORIZ.
INCL.
VERT.
HORIZ.
INCL.
VERT.
Bushels per inch
18'
5.0
7.5
10.0
7.5
10.0
15.0
18
21'
5.0
7.5
10.0
7.5
10.0
15.0
24
24'
5.0
7.5
10.0
7.5
10.0
20.0
31
27'
7.5
7.5
10.0
7.5
10.0
20.0
40
30'
7.5
10.0
15.0
7.5
15.0
20.0
49
33'
7.5
10.0
15.0
10.0
15.0
20.0
60
36'
7.5
10.0
15.0
10.0
15.0
20.0
71
42'
10.0
10.0
15.0
10.0
15.0
20.0
96
48'
10.0
15.0
20.0
15.0
20.0
25.0
126
60'
25.0
30.0
35.0
197



Standard Rotating Bin Sweeps
4" for 6"
5" for 8"
7" for 10"
Bin Diameter
Tubes
Tubes
Tubes
18'
1.5
1.5
3.0
21'
1.5
2.0
3.0
24'
1.5
2.0
5.0
27'
2.0
2.0
5.0
30'
2.0
3.0
5.0
33'
2.0.
3.0
5.0
36'
2.0.
3.0
5.0
42'
3.0
3.0
5.0
48'
3.0
3.0
5.0
